The "Clemagotchi"

Building a Valentine's Day present

Introduction

My girlfriend, Clem, and I have a running joke that when she comes home from work she’s akin to a tamagotchi; she needs feeding, bathing and entertaining and then she’s happy. For Valentine’s Day 2016 I decided I wanted to make a real-life tamagotchi version of her as a present. This page documents the design process and the final result.

Context

At time of writing, I’ve been learning electronics for just over a year. I wanted to make something which showed off what I’ve learned and give my girlfriend something which was unique. I work as a research scientist by day which usually involves writing software. While waiting for code to compile, I like to browse discount electronics components and modules on eBay.

Concept (T minus 9 days)

About a week before “V-day” I was browsing eBay and came across some little OLED display modules. They looked fun to play with and the concept of building a real-life “Clemagotchi” started to form in my head. I found a UK seller for the modules, placed an order and then started thinking about how I might actually implement the thing with the parts I either had lying around or that I could buy at short notice.

I did a couple of back-of-the-envelope calculations about the maximum size the hardware would take up if I ended up with the worst-case scenario of having to use a full-sized Arduino nano and fairly beefy LiPo cell to power the device. I then bought a little ABS project box which would just fit the hardware in.

I hoped that there would in fact be plenty of space in the box. In the end, my worst-case planning was indeed overly pessimistic but I wanted to make sure I wouldn’t have to buy a bigger box.

Planning (T minus 8 days)

Fortunately my girlfriend was away for the day the Saturday before “V-day”. I spent the day researching the project. I found that Adafruit had an Arduino library for the display. I happened to have a stock of ATTiny85 microcontrollers and there’s a port of the Arduino IDE to that controller.

“Excellent,” I thought, “I can write the firmware for the ATTiny85 and make use of the display library.” This turned out to be false but I didn’t know it then.

The tamagotchi logic

I knocked up a quick Javascript prototype of the actual tamagotchi logic to make sure I knew what I wanted the firmware to do. It’s a lot quicker to prototype in Javascript before writing the firmware in C.

Roughing out the displays

I could also prototype out the screens. I made a few monochrome icons for the display and wrote some Python scripts to start roughing out the screens. At this point I found a post indicating that the Adafruit graphics library wouldn’t work on the ATTiny85. This was entirely due to space constraints: the ATTiny85 has around 16-tweets of non-volatile storage for program code and graphics.

The SSD1306 screen works by, essentially, specifying rectangular area of the screen to update and then sending data which fills that area. I wrote a Python script with some functions for blit-ing data in this manner to a PNG and prototyped the screens.

Programming the ATTiny85 and not blowing up the display

I wanted to be able to program the controlling ATTiny85 in place which meant making an ISP header for the circuit. (I ended up using a clip directly on the ATTiny85 rather than a separate header but the principle is the same.)

While I was waiting for the display to come, I played with programming the ATTiny85 microcontroller. Conveniently, an Arduino Uno can be programmed to act as an ISP programmer.

This was working well but, reading the datasheet on the SSD1306 display, it was clear that I had to spend a little time worrying about voltages. I couldn’t put 5V logic levels on the display without running the risk of frying the electronics. I had to make sure that the Clemagotchi was exposed to no more than 3.3V. Fortunately, all of the signals on the ISP header are unidirectional and so a 74HC4050 could be used to convert the 5V Arduino Uno into a 3.3V ISP.

For those following along at home, here’s the schematic:

ISP schematic

Technically only the output lines (MOSI, SCK and RST) needed to be level-shifted. The MISO line, although running at 3.3V, would still be OK driving the Arduino Uno. To guard against accidents I used the ‘4050 as a buffer on the MISO line so that the Clemagotchi wouldn’t be fried even if the Arduino Uno accidentally drove the MISO line.

The pull-down on the SCK line is to make sure that the line has a defined value as the Arduino boots and, similarly, the pull-up on RST is there to prevent accidental resets. These were probably overkill but it seemed sensible to include them.

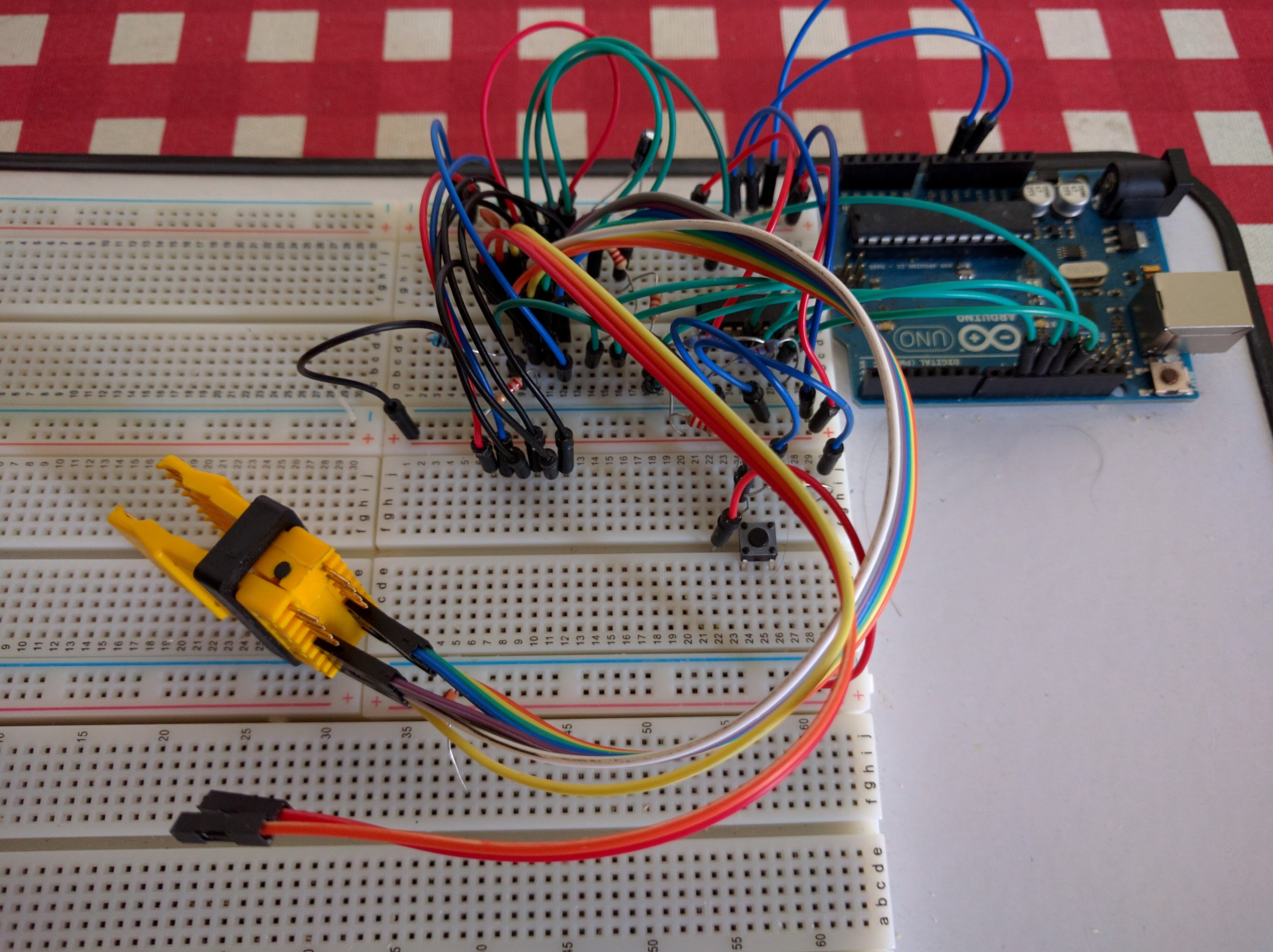

Since this was going to be a temporary use bit of hardware, I wired it up on my Arduino prototyping breadboard which is made from a Poundland whiteboard. Here’s a picture:

The yellow clip which was used to attach directly to the ATTiny85 is clearly visible. Notice that there’s no power wire coming from the Arduino. That’s intentional. I wanted to power the Clemagotchi off battery lest my tired brain accidentally connected to the 5V Arduino power.

If I were being even more careful, I’d have added a tri-state buffer to cause the ISP pins to be electrically disconnected when the programmer wasn’t running. For my needs I got away with it but if I ever make a variable-voltage ISP shield for the Arduino, I’ll add one.

Building (T minus 5 days)

I live with my girlfriend and so I had to take opportunities where I get them. Five days before “V-day”, she went to be early. This was my opportunity. The screen hard arrived and so I experimented with driving the display from my Arduino Uno via a 74HC4050 for level-conversion.

I knew that memory was going to be tight for the display so I wrote a Python script to perform a simple run-length encoding of the images and save them directly as a C++ header suitable for inclusion into the firmware. By around this point, I had display updates working quite nicely.

This was using the hardware SPI support on the Arduino Uno. The ATTiny85 doesn’t have hardware SPI but the USI hardware on the ATTiny85 could be bent to my will via the TinySPI.

The ATTiny85 has five easily accessible GPIO pins. The display needed four of them so I had one left for two buttons. Oh dear :(. After a little head scratching I came up with the (non-original) idea of wiring the two switches to form a switchable voltage divider. The GPI pin thereby gets VCC, half-VCC or 0V depending on whether no buttons are pressed, the “select” button is pressed or the “action” button is pressed. This design precludes pressing both buttons at once but I had no need of that in the UI.

Here’s the full Clemagotchi schematic I came up with:

Clemagotchi schematic

The pull-up on CS is there to make sure the display is inactive when programming the ATTiny85. The pull-up on RST is to protect against spurious resets. In the final hardware module I also added a little reset switch which simply pulled RST low but this was probably unnecessary.

Packaging (T minus 4 days)

At this point, I had a working Clemagotchi module but no nice case:

I made the executive decision that I didn’t have enough time to learn enough CAD to 3D print a funky enclosure at work. Instead I very, very quietly marked up and drilled a black ABS project box for the Clemagotchi. I used some small files to nicely bezel the front window and I test-fit the module.

The next morning at work I “borrowed” the colour laser printer to print a nice decal on a sheet of adhesive labels. The decal was designed to be forgiving in alignment and, hopefully, to evoke a nice “retro” gaming æsthetic.

Refining (T minus 3, 2, 1…)

Giving (Lift-off!)
